BÖNNIGHEIM, Germany — December 11, 2014 — As part of an AiF research project, scientists from the Hohenstein Institute in Bönnigheim have, for the first time, developed a textile finishing with both an antiviral and an antibacterial function. This technology can be used for products in nurseries, child day care centres and hospitals to interrupt chains of infection.
Most infection-induced respiratory problems are caused by viruses. For example, the respiratory syncytial virus, a pathogen belonging to the family of paramyxoviruses, can cause infections of the upper respiratory tract in the form of colds, coughs, acute bronchitis or even pneumonia, particularly in small children. At the start of winter, the rate of infections in child day care centres and nurseries regularly increases. Diarrhoea caused by noroviruses and rotaviruses as well as bacterial infections of the respiratory tract and the alimentary tract, on the other hand, are “in season” all year round.
To avoid droplet and smear infections as far as possible, hygienic hands, textiles and surfaces are of paramount importance.
The essential factor in avoiding or limiting the spread of disease in childcare facilities is regular and thorough handwashing, by children and their carers.
However, textiles can also play a part in spreading pathogens. Viruses do not have their own metabolism and can therefore only survive for a limited time outside a host, and unlike bacteria, do not multiply there. However, as studies have impressively documented, textiles that are in regular contact with hands have been proven to contribute to the spread of viruses (Sauver et al., 1998). In a scientific examination, clothes as well as domestic and hospital textiles in the form of bed linen, towels, kitchen towels and so on are, alongside hands, an important potential transmission route for viruses (See Figure 1).
Figure 1: Schema of transmission routes of germs via hands and textiles (following Bloomfield, 2011) © Hohenstein Institute
Surfaces of all kinds, which can also be contaminated by viruses and bacteria via the hands or air, are the third key transmission route for viruses. One important element in preventing infection is therefore the cleaning of surfaces. The Hohenstein scientists are investigating these factors in their current research project.
The test design included cleaning cloths in which, for the first time, antiviral and antibacterial effectiveness were combined with each other in one functional textile finishing. “Over the long term, we are interested in finding out whether the risk of infection, that is to say the spread of germs from person to person, can be reduced by using biofunctional textiles in the future,” says Prof. Höfer, head of the hygiene, environment and medicine department.
To achieve this goal, various organic and inorganic colloidal or nanoparticle copper compounds and copper complexes were first applied in a sol-gel process. The effectiveness of the textile microfibre substrate was optimised using various application techniques such as foulard or spray methods. The inactivation of the test viruses was significant, was retained over 15 washing cycles and was at the same time abrasion-resistant.
A second alternative antiviral finish of microfibre cloths was achieved by finishing with copper pigments in a high-temperature exhaust process. In a similar way to dying with dispersion dyes, the dispersed copper pigments were incorporated in the fibres in a slightly acid environment. In a second step, fixing was carried out using a polymer binding agent in a cold padding process to protect the copper particles against mechanical abrasion. These copper finishes also produced good evenness, but there was a slight green tone compared to the originally lighter fabric colour (See Figure 2). All samples passed the laboratory tests on skin-friendliness.
Figure 2: Color differences in cleaning cloths made of microfibers before and after finishing with copper pigments. ©Hohenstein Institute
The effectiveness tests under realistic conditions were carried out on different surfaces, such as glass, stainless steel or wood, which were contaminated with viruses and wiped with the finished cleaning cloths (See Figure 3). The bacterial virus MS2, a non-pathogenic surrogate virus, which due to its structure and environmental stability is comparable to clinically relevant viruses such as novovirus, poliovirus, hepatitis A or enteroviruses, was used as the test virus. The finished microfibre cloths absorbed 91% of the applied viruses. At the same time, the virus concentration in the cloth was reduced by approximately 90%. Effectiveness tests against bacteria and mould were also carried out in accordance with standards (DIN EN ISO 20743 and EN 14119). With this test set-up, the finishes were optimised in a targeted manner.

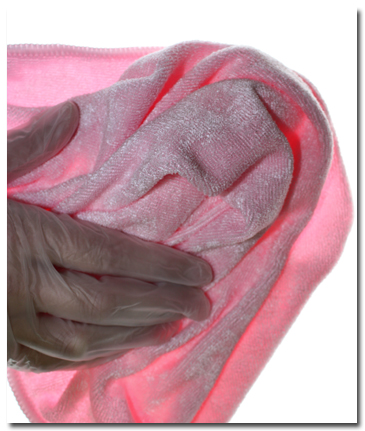

Figure 3: Laboratory tests under realistic conditions with cleaning cloths for the inactivation of viruses, bacteria and molds on surfaces. ©Hohenstein Institute
The research project reveals that antiviral cleaning cloths provide an efficient hygienic effect and can help to reduce the germ transfer rate e.g. of pathogens in nurseries and child day care centres. However, this new functionalisation could be of interest in the domestic environment, in hospitals, old people’s homes, care homes and in communal facilities (e.g. canteens) and in protective clothing for the fire brigade, emergency services and military.
Posted January 6, 2014
Source: The Hohenstein Institute
